- Max. No. of Strings: 4
- System Max Dc Voltage: 160V
- Max. Single Input Current: 125A
- Max. Output Switch Current: 250A
- Breaking Capacity: 7.5kA
- Rated Insulation Voltage: 500V
- Rated Impulse Withstand Voltage: 6kV
- Ingress Protection Degree: IP2X
- Environment Temperature: From -10C – 50C
- Environment Humidity: 0-95%
- Dimensions: 380*270*150 mm
- Weight: 18kg
- Box Material: Carbon steel
- Warranty: 2 years
Combiner Box
Manufacturer Code: 12K-125A(4-1)
Order Code: 12K-125A(4-1)
- UK-based technical support team, always ready to assist

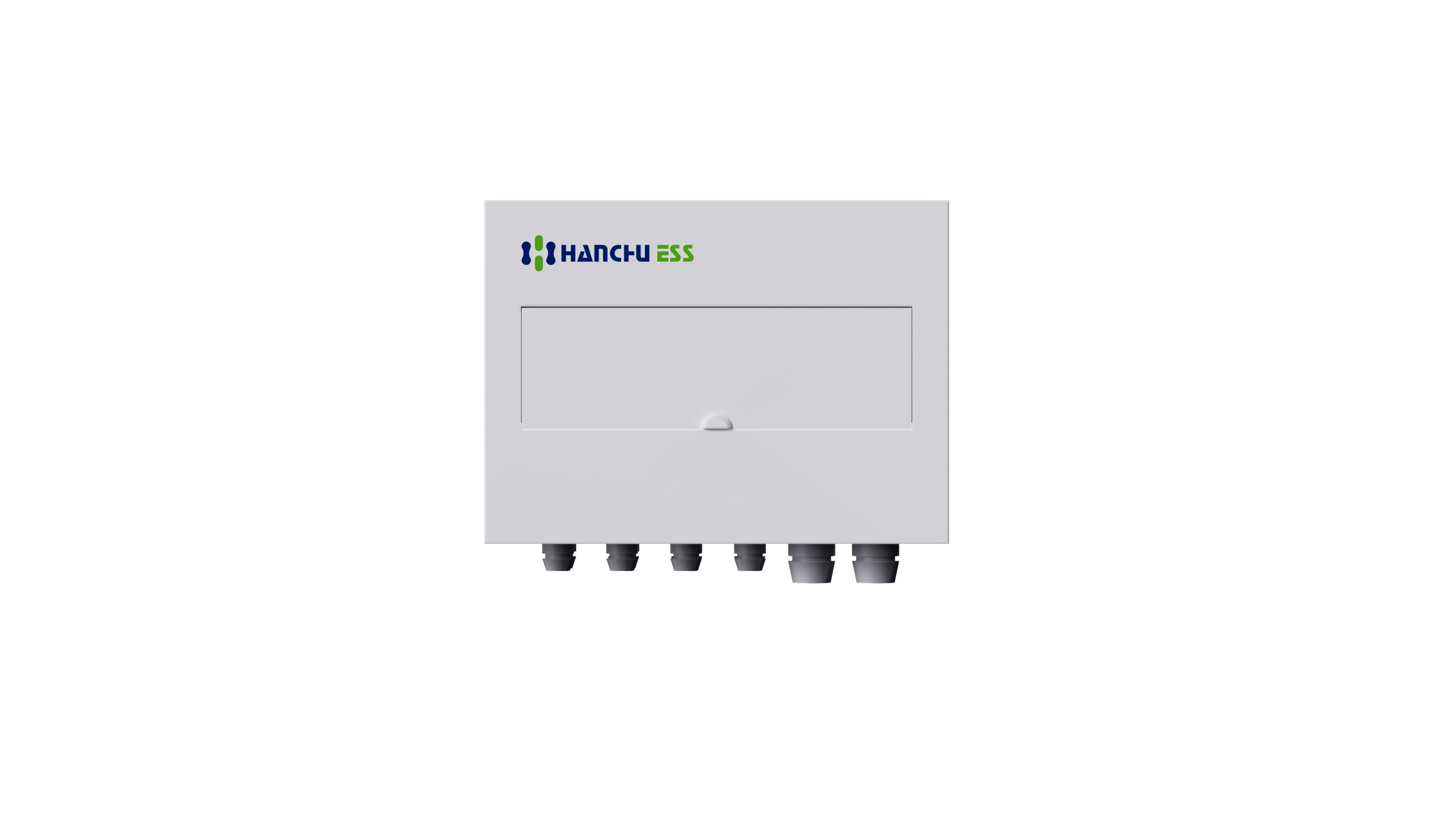

Combiner Box
Manufacturer Code: 12K-125A(4-1)
Order Code: 12K-125A(4-1)
Introduction

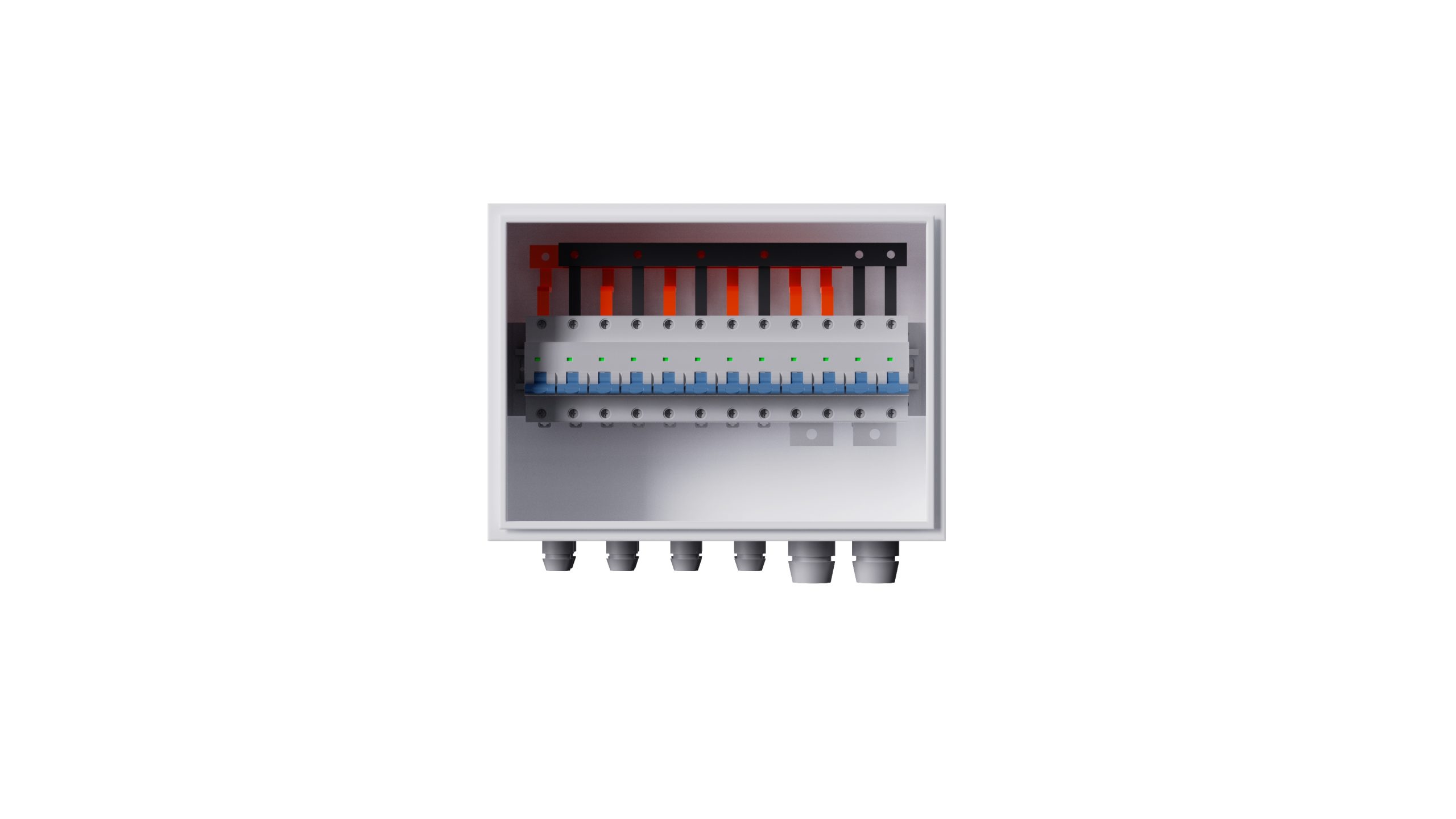

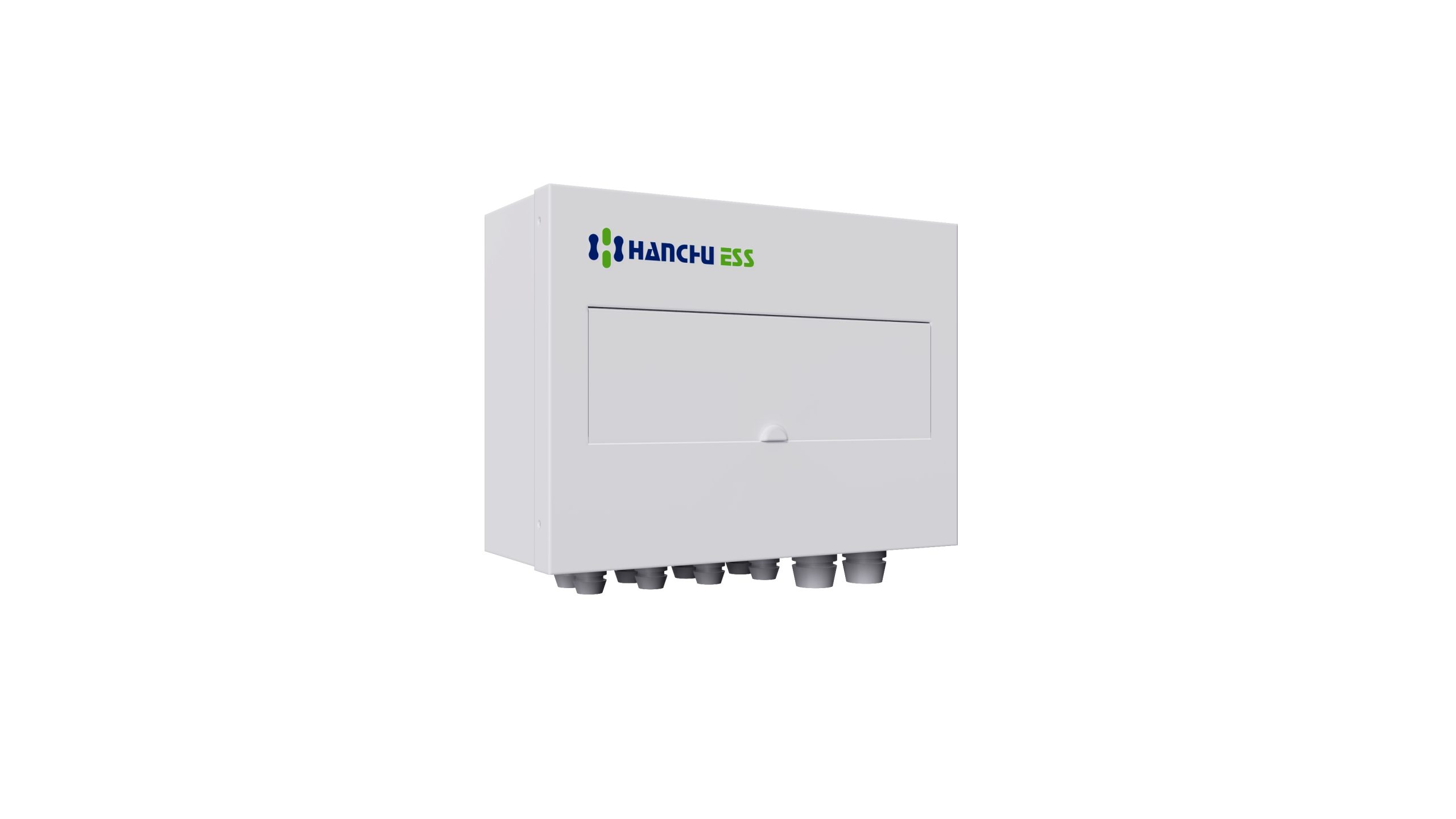

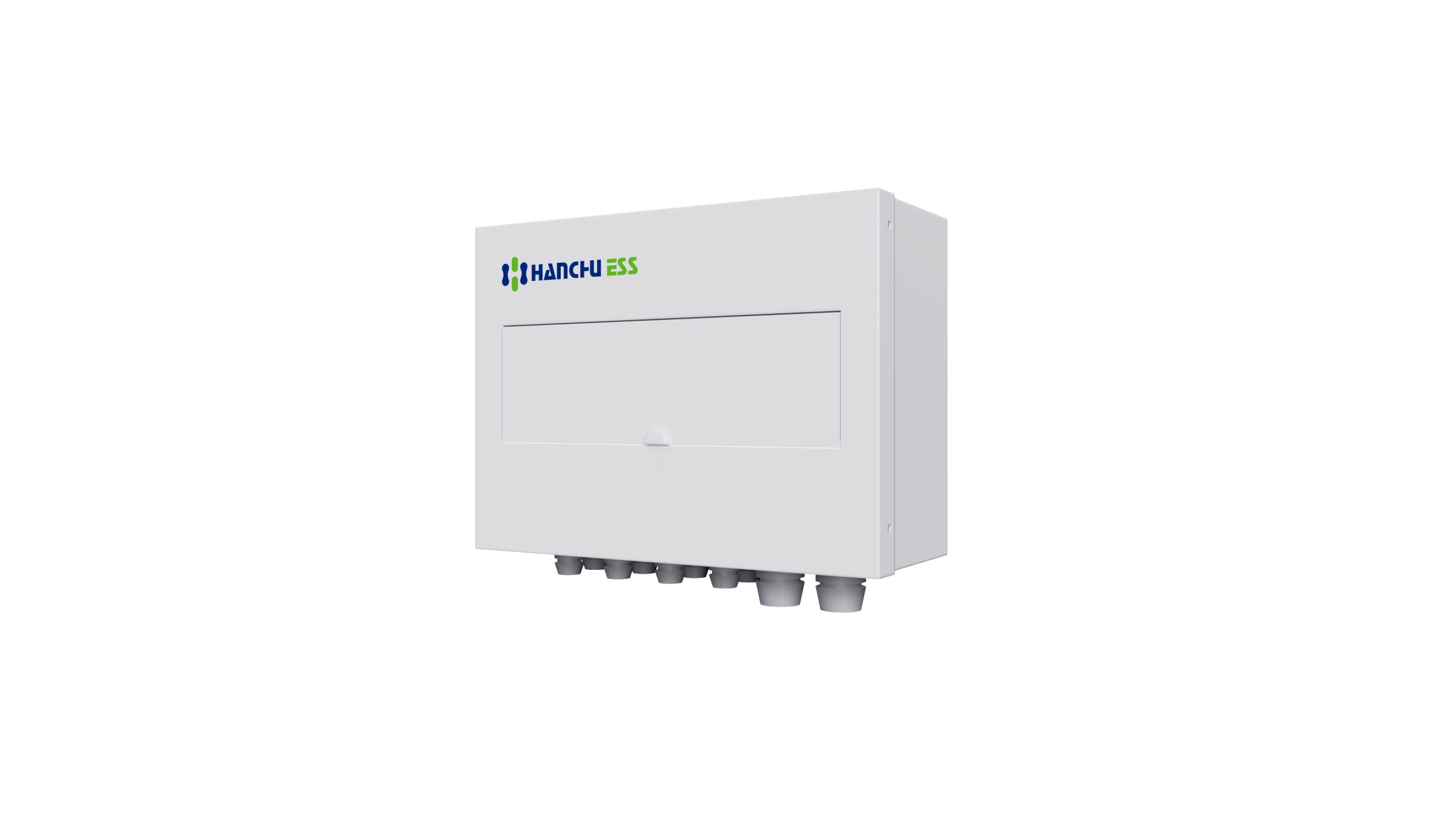

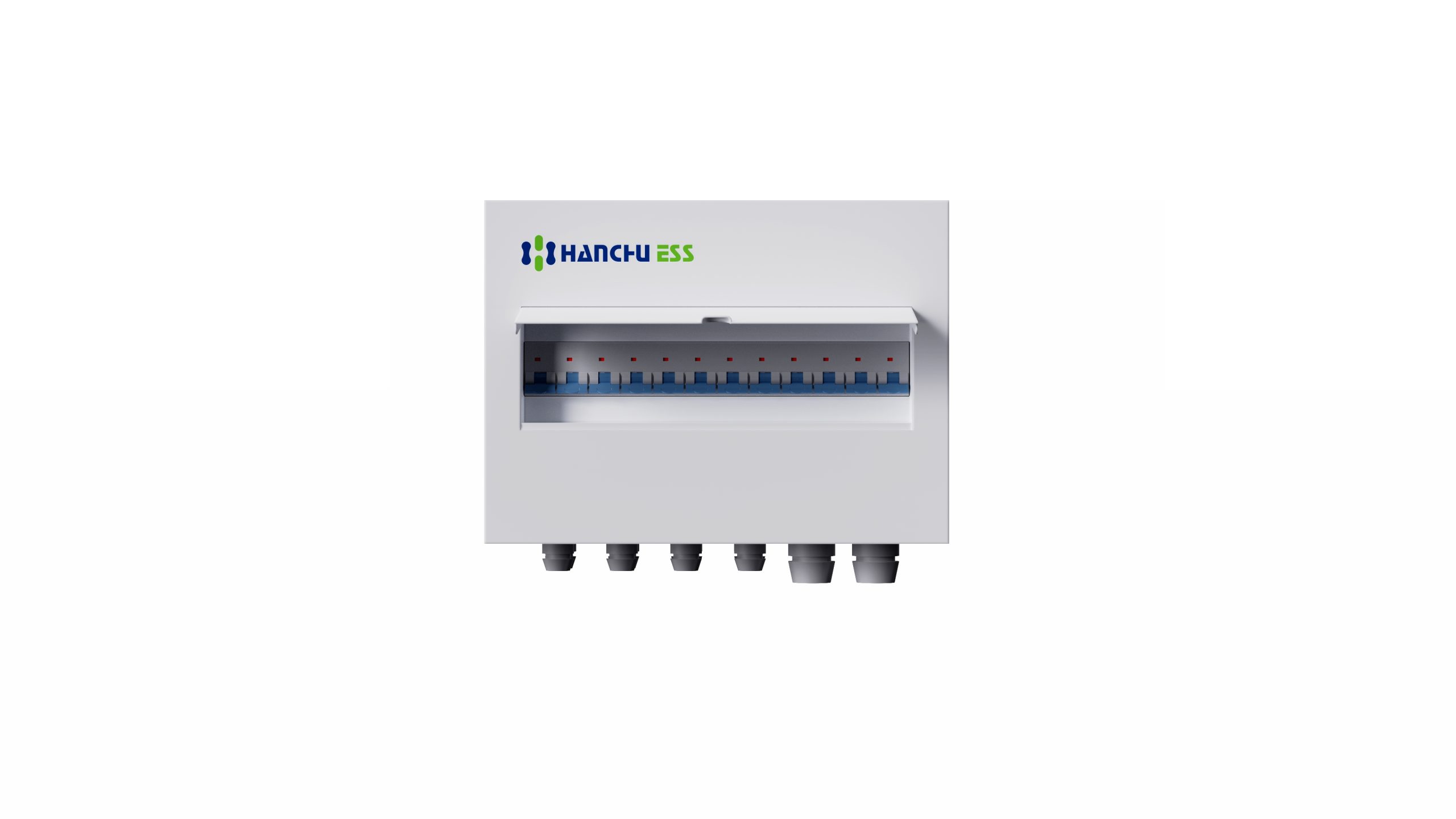

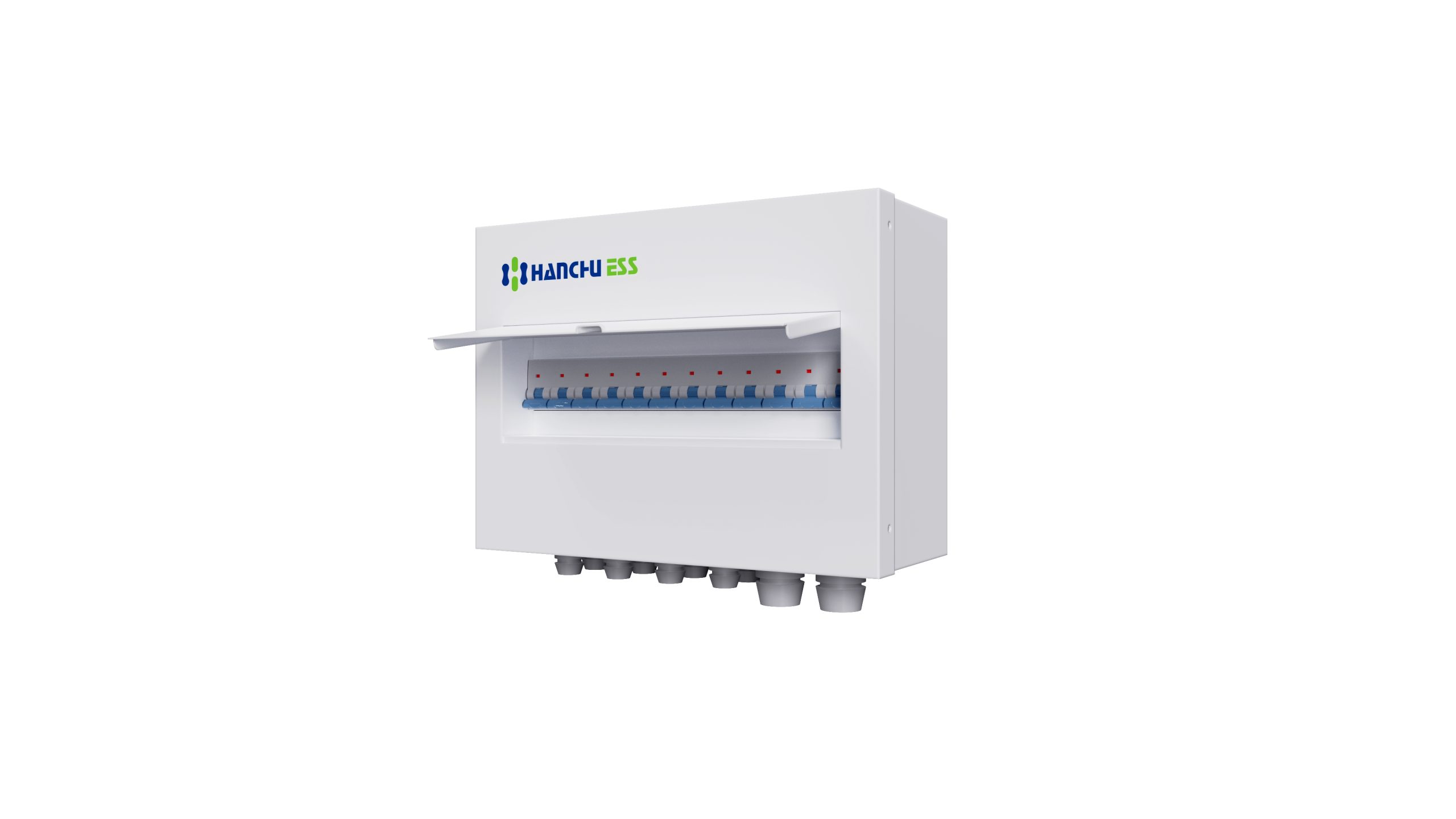

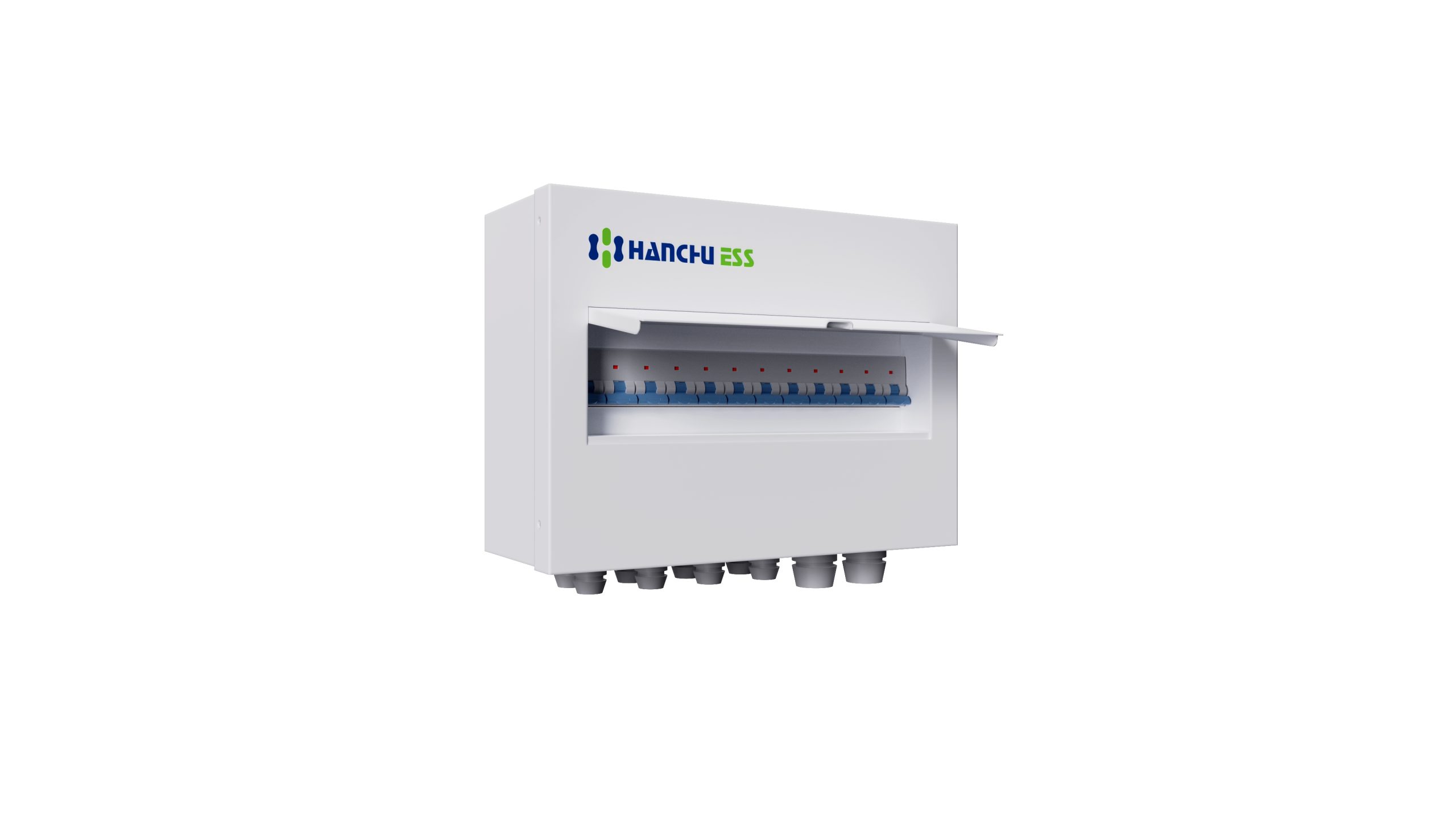

The HANCHU Combiner Box 12K-125A(4-1) is an accessory to work with low voltage batteries, to extend total charge/discharge current when connect to the inverter that accepts high battery input current – supporting up to 8 HOME-ESS-LV-3.68K or HOME-ESS-LV-9.4K batteries connected in parallel.
