- Wireless communication method: LoRa 433M
- Frequency range: 410.125Mhz – 493.125Mhz
- Channels: 84 channels (0 to 83), each channel 1 MHz, half-duplex
- Built-in meter: CHINT DDSU666-Q with dual channel CT (HANCHU customisation)
- Voltage range: AC 85V~265V
- Antenna gain: 5dBi
- Antenna length: 481mm
- Internal communication: RS485
- Communication baud rate: 9600bps
- Operating temperature: -40°C~+85°C
- Outer packaging dimensions: 480mm*335mm*116mm
- Waterproof enclosure dimensions: 175mm*125mm*100mm
- Weight: 2.35kg
- Warranty: 2 years

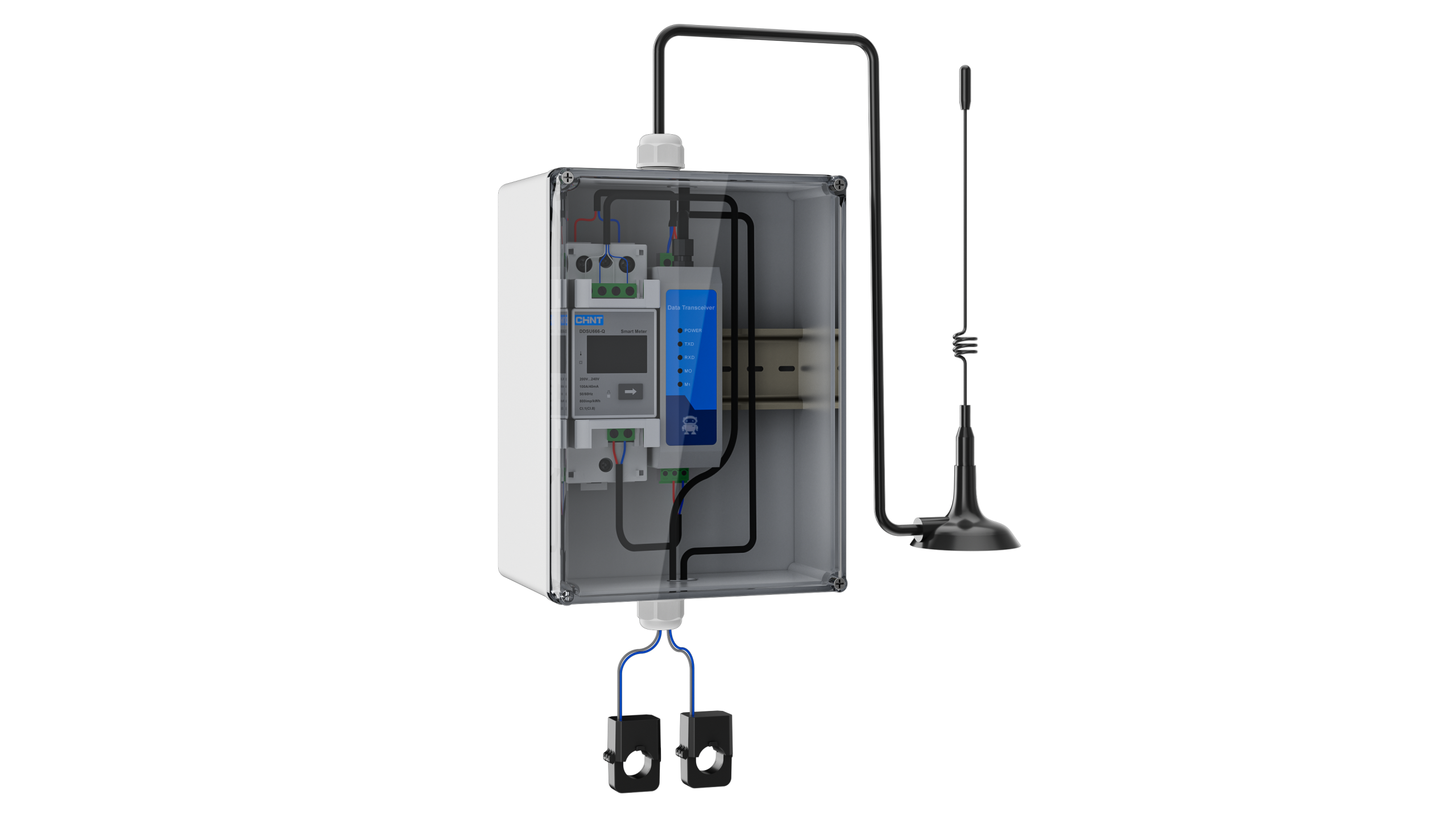

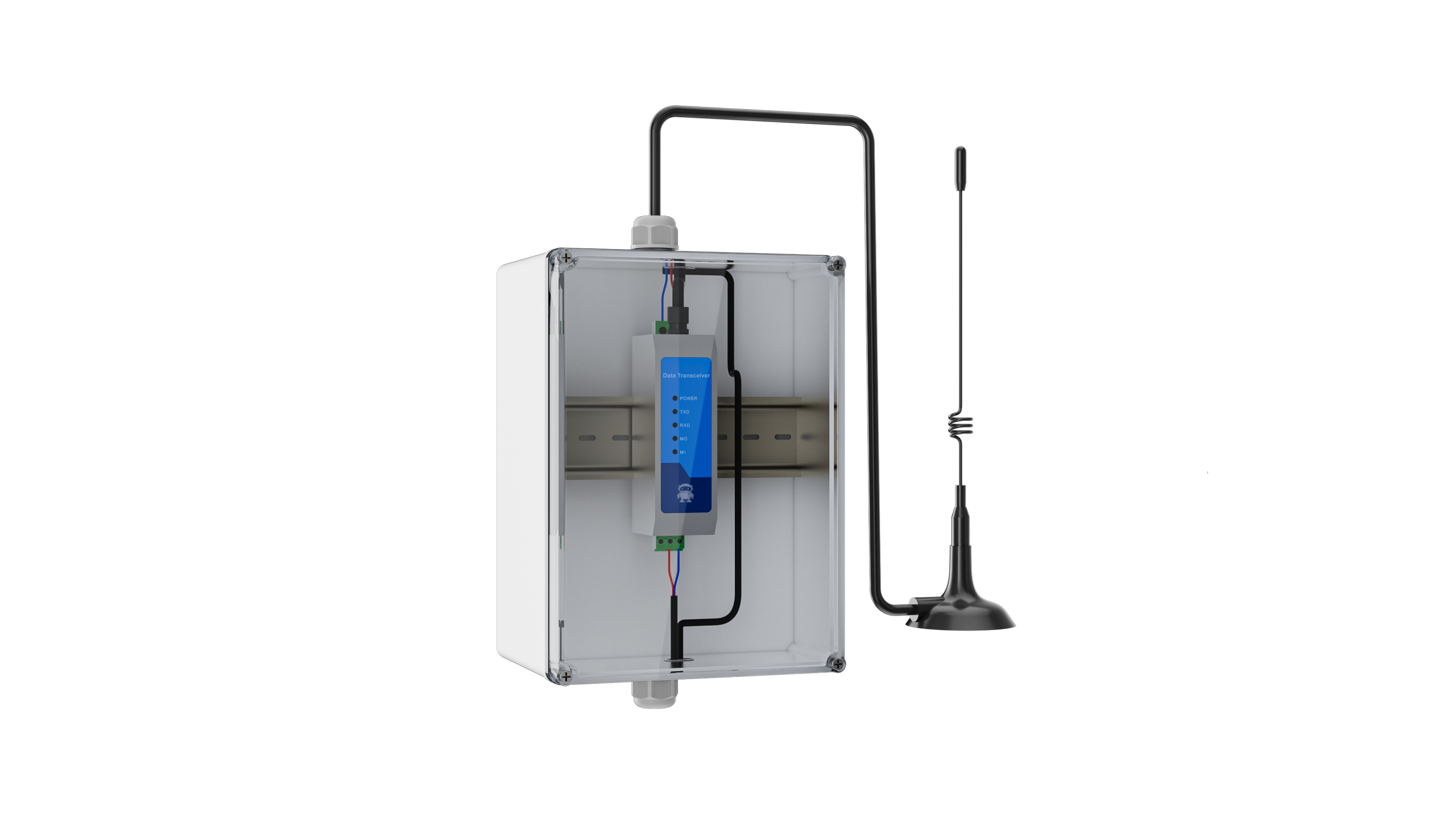

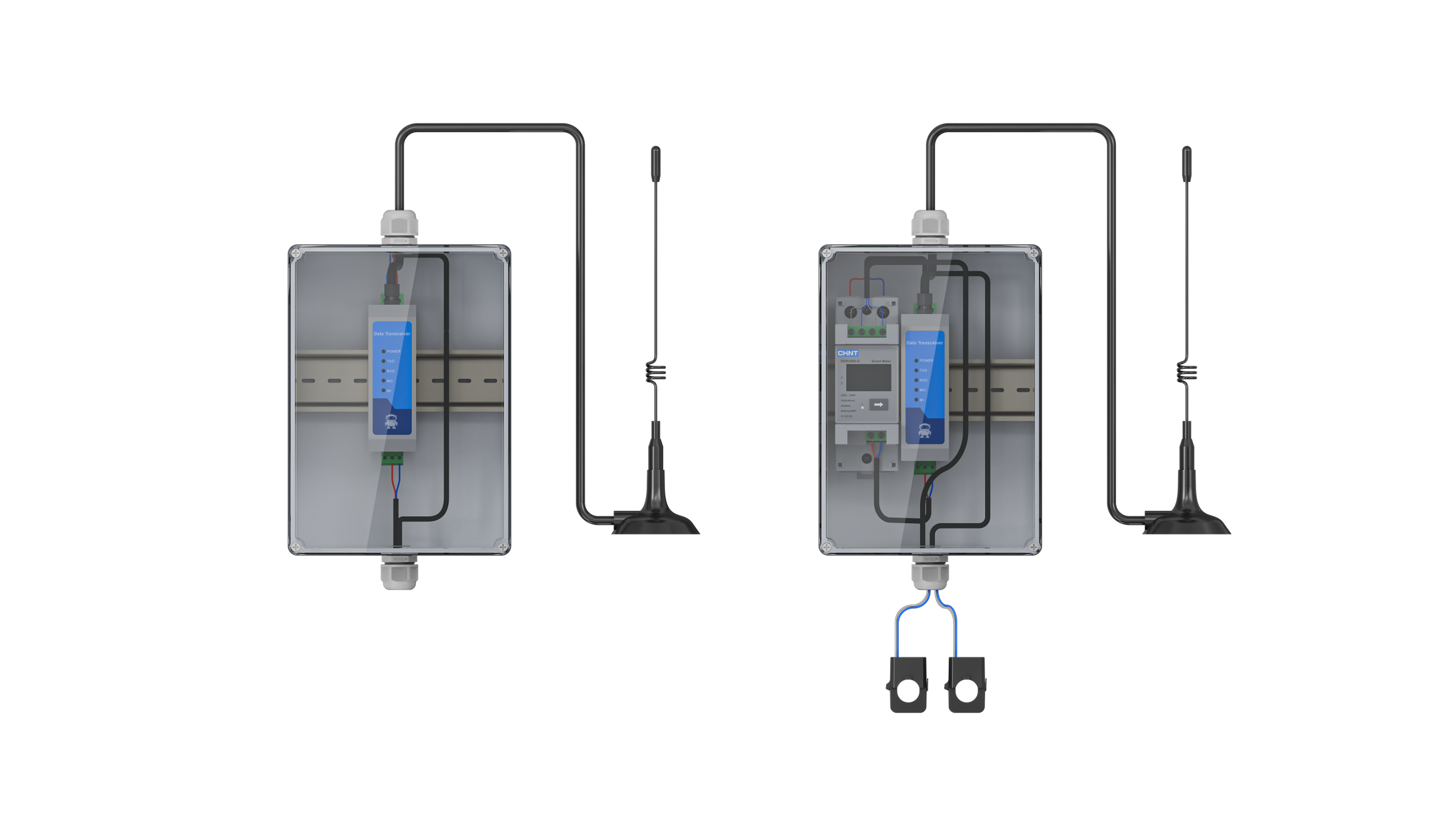

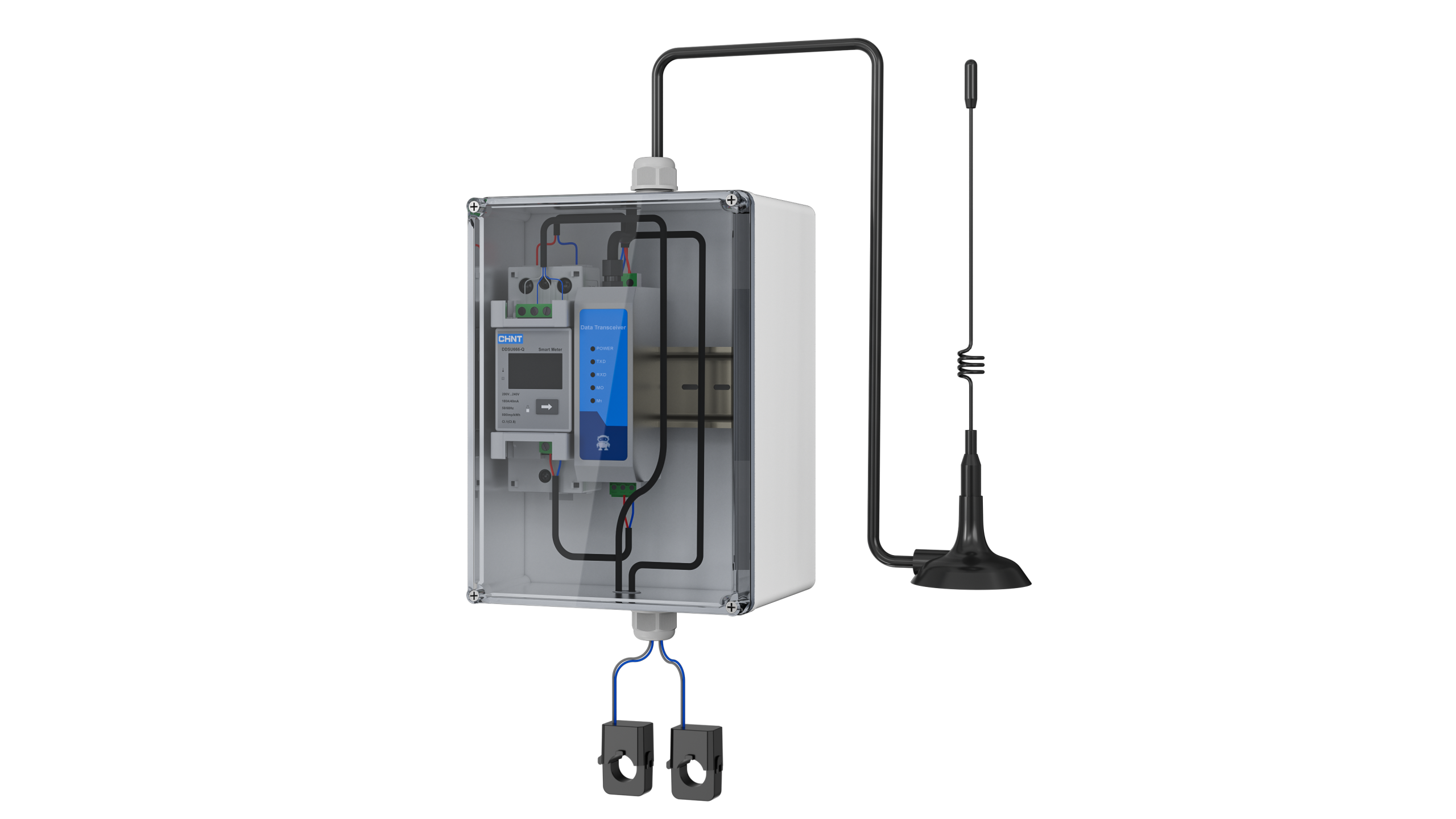

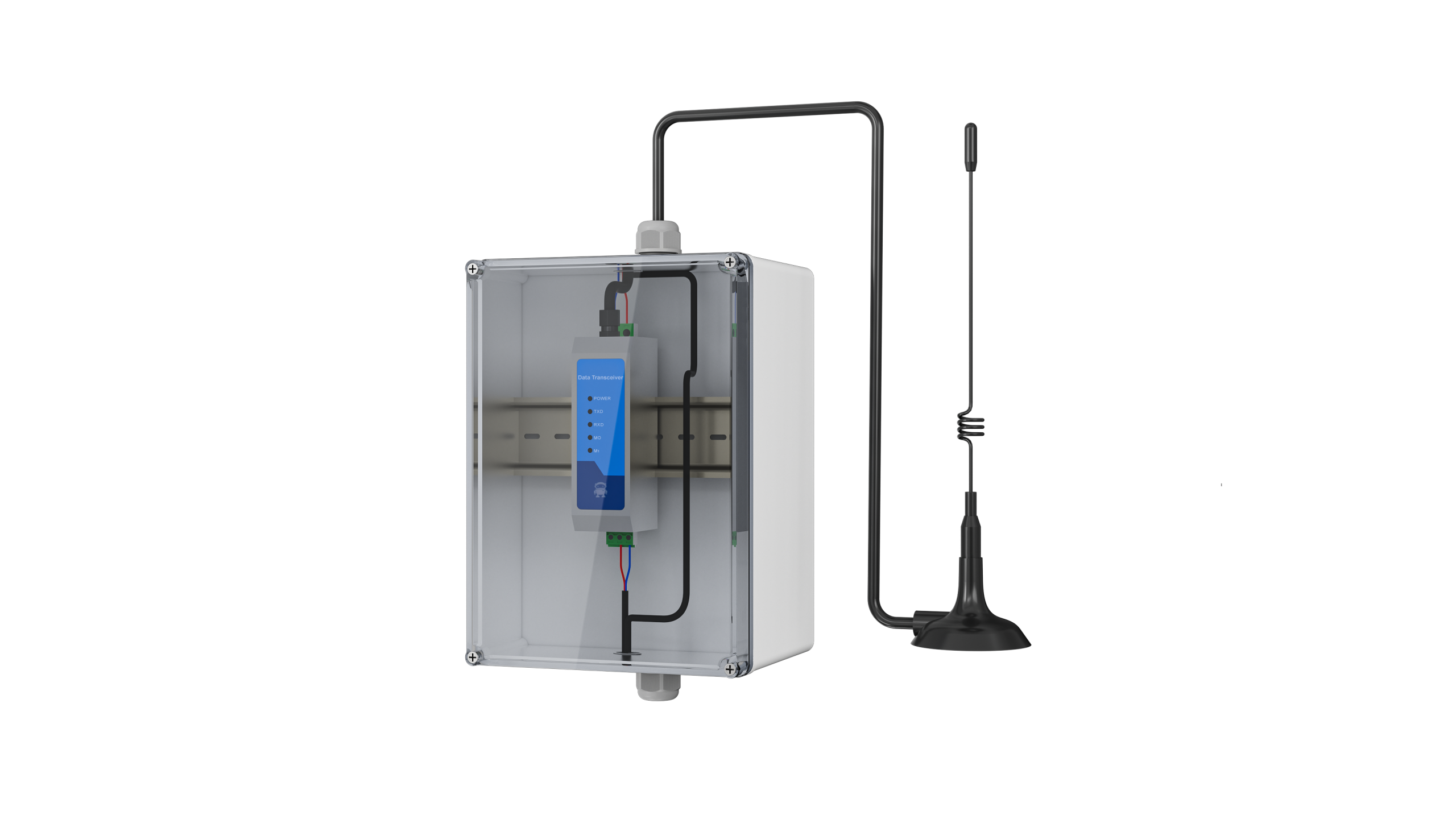

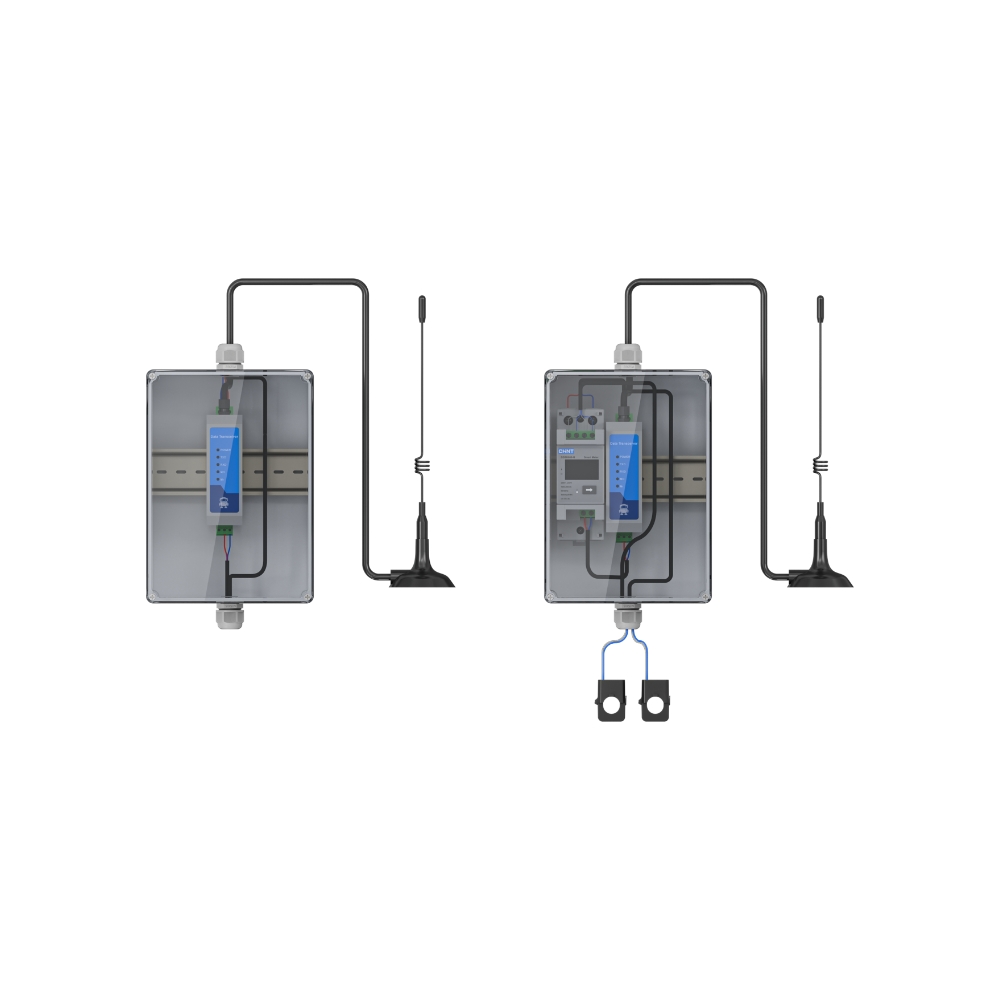

Wireless Meter
Manufacturer Code: HESS-Meter-LR2
Order Code: HESS-Meter-LR2
- UK-based technical support team, always ready to assist
Wireless Meter
Manufacturer Code: HESS-Meter-LR2
Order Code: HESS-Meter-LR2
Introduction

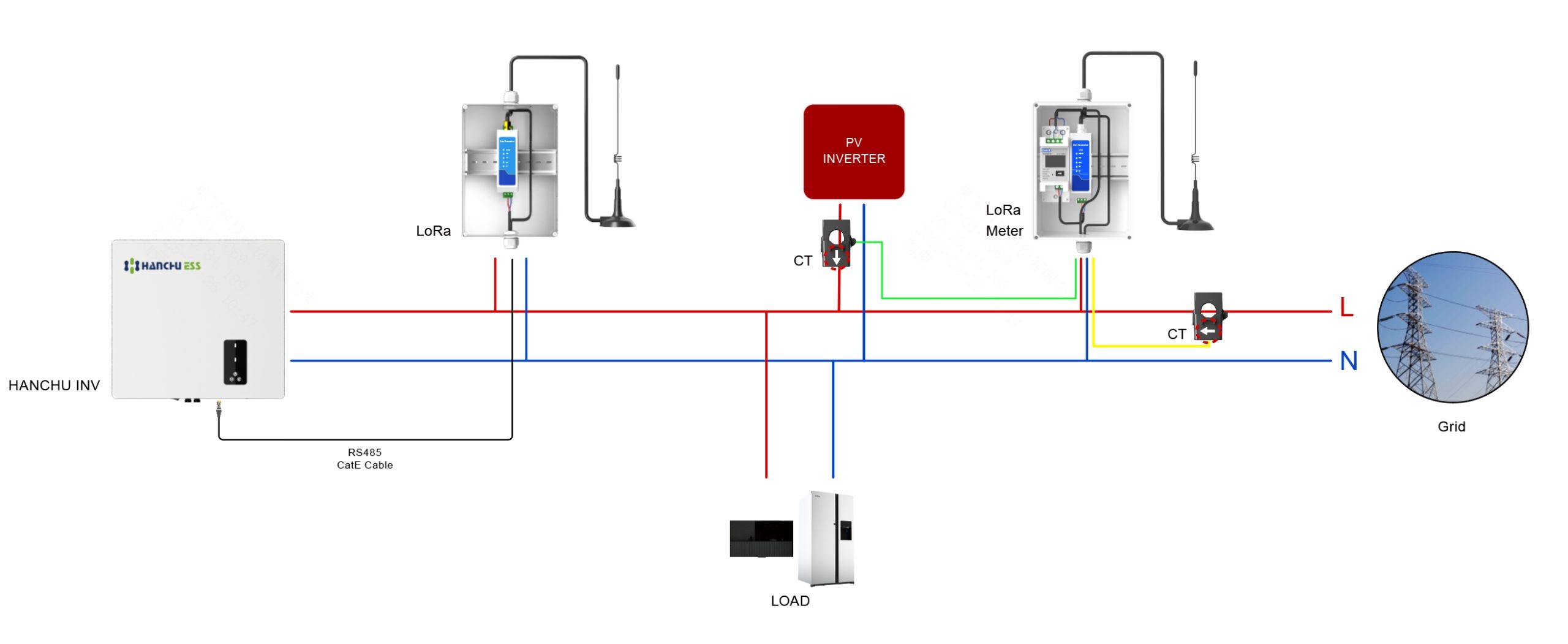

A wireless metering solution specifically designed for grid-connected and AC-coupled systems, enabling real-time monitoring of photovoltaic generation and grid-connected power to track energy flow.
