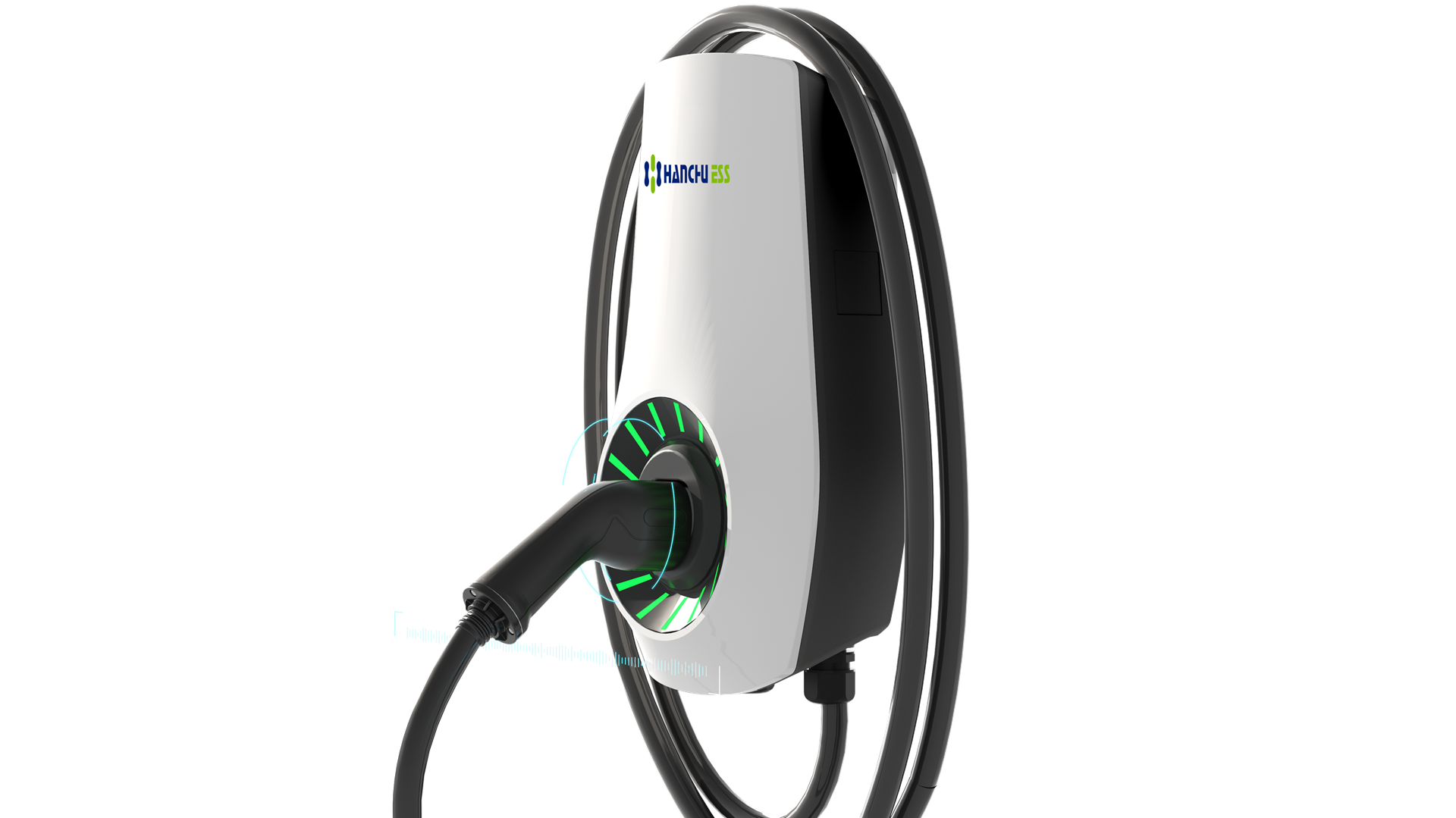

Hanchu EV Charger 22kW - Image 2

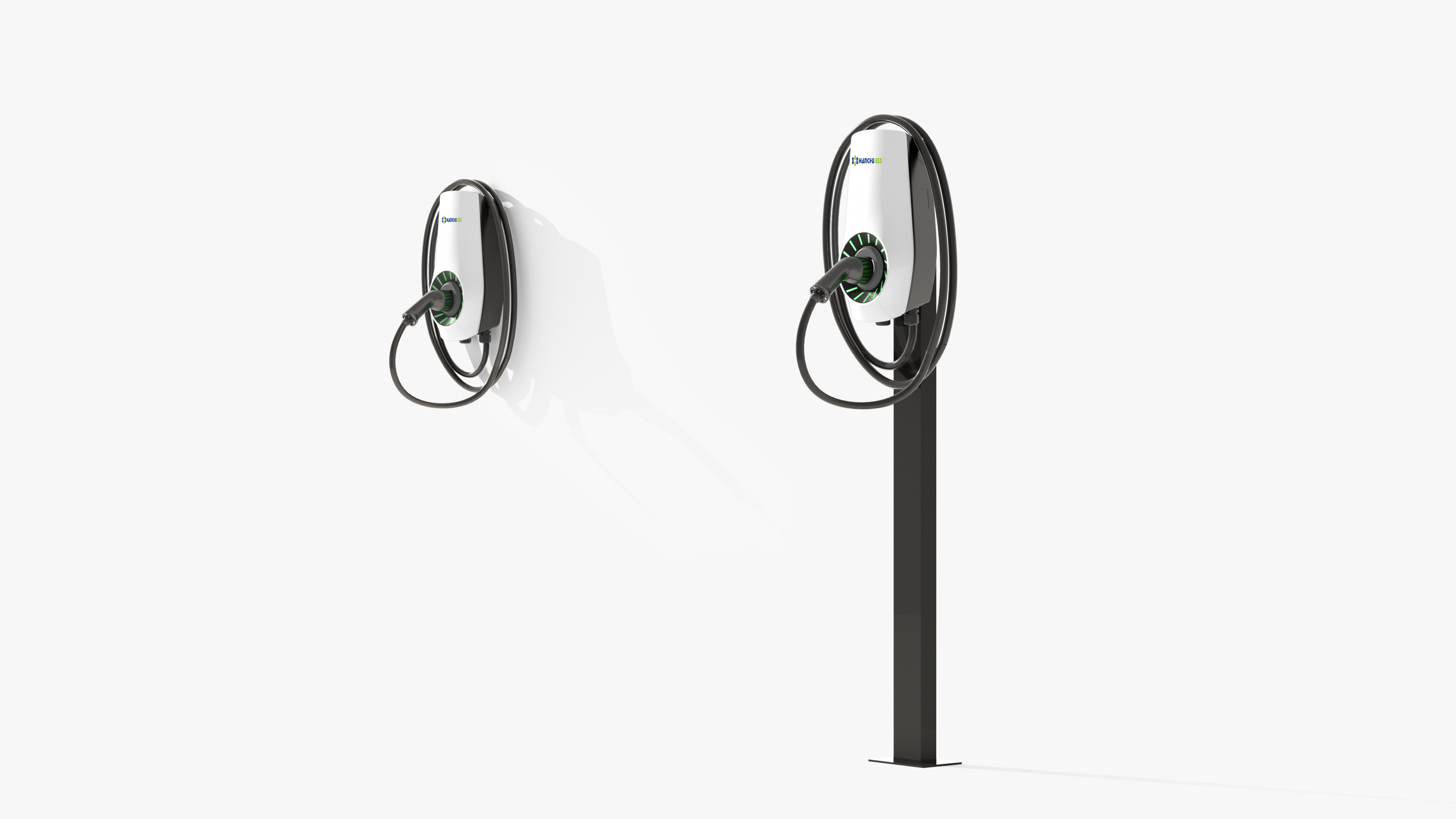

Hanchu EV Charger 22kW - Image 3
Hanchu EV Charger 22kW
Hanchu EV Charger 22kW - Image 2
Hanchu EV Charger 22kW - Image 3
  • UK-based technical support team, always ready to assist
  • Reliable national RMA service with a 48-hour response time
  • 3-Year Warranty

Hanchu EV Charger 22kW

SKU: HC-EV-AC-22K Categories: , Tag:

Manufacturer Code: HC-EV-AC-22K

Order Code: HC-22kW-EV-Charger

Safety, Efficiency and user-friendly operation

Advanced Safety Features

Incorporates Type A + DC 6mA leakage protection and PEN fault protection, ensuring top-tier safety for both equipment and users. Additional safeguarding measures include over/under voltage, overload, short circuit, earth leakage, ground, over-temperature, and surge protections, providing comprehensive defence against a wide range of electrical hazards.

Intelligent Charging Management

Supports multiple charging methods including APP control, RFID, and plug & play to accommodate various user preferences. Dynamic Load Balancing control optimises load management, preventing system overloads and ensuring efficient energy distribution.

Smart Connectivity and Integration

Provides extensive connectivity options, including WiFi, Bluetooth, Ethernet, and 4G, along with an RS485 interface for seamless multi-device communication. Compatible with the OCPP 1.6J communication protocol, enabling interoperability across different charging network platforms.

Efficient Energy Management

Features an intelligent platform for App and web-based monitoring, remote start, and charging schedule management to maximise energy efficiency and reduce costs. Integrated PV storage and charging control through a single platform offer a unified approach to smart energy management.

Durability and Environmental Resilience

Built with a robust casing rated IP54 (or IP65 for enhanced models), ensuring protection against dust and water, making it suitable for diverse environmental conditions.

Hanchu EV Charger 22kW

SKU: HC-EV-AC-22K Categories: , Tag:

Input Power (AC)

  • Rated Power: 22kW
  • Input Voltage: 360-450.5V

Output Parameters

  • Output Current: 32A
  • Output Power: 22kW
  • Connector Type: Type 2 socket / 5m cable

User Interface & Control

  • User Authentication: APP, RFID
  • Communication: WiFi / Bluetooth / LAN
  • Meter: DLB meter (standard) / MID energy meter (optional)
  • Mounting Pedestal: None (standard) / With pedestal (optional)
  • External Communication: RS485
  • Communication Protocol: OCPP 1.6J

General Data

  • Dimension (W×H×D): 240×460×145mm
  • Net Weight: 8.5Kg
  • Ingress Protection Degree: IP65
  • Storage Temperature: -30°C to +50°C
  • Operating Temperature: -30°C to +85°C
  • Operating Humidity: 5%-95% (no condensation)
  • Altitude: ≤2000m
  • Cooling Method: Natural cooling
  • Material: PC+ASA
  • Warranty: 3 years
  • Certificate: CE, CB

Protection

  • Leakage Protection: Type A + DC 6mA
  • Electrical Protection: Over/under voltage protection, overload protection, short circuit protection, earth leakage protection, ground protection, over-temperature protection, surge protection
