Luxpower Tek Three Phase Trip 20K Hybrid
Power Controller
The LuxPower Tek Trip20K is a robust three-phase hybrid inverter designed for residential and commercial energy systems.
It integrates advanced technology to manage both solar power generation and battery storage, optimising energy usage and ensuring reliability. With a 20kW output, it supports substantial electrical loads, making it suitable for larger properties or businesses with significant energy demands. The hybrid functionality allows it to seamlessly switch between grid power, solar power and stored energy, enhancing efficiency and reducing dependency on the grid. This flexibility not only maximises the use of renewable energy but also provides a backup during power outages, ensuring continuous supply.
In addition to its powerful performance, the LuxPower Tek Trip20K features an intelligent energy management system. This system includes real-time monitoring and control capabilities through a user-friendly interface, accessible via mobile devices or computers. It allows users to track energy production, consumption and storage status, enabling informed decision-making for energy management. The inverter is also equipped with multiple safety features, such as over-voltage and over-temperature protection, ensuring safe operation. Its compatibility with various battery types and scalability options makes it a versatile choice for diverse energy needs, from small-scale installations to larger, more complex setups.
Luxpower Tek Three Phase Trip 20K Hybrid at a Glance
Key Luxpower Tek Three Phase Trip 20K Hybrid Features
12-year warranty as standard
50A Charge and Discharge
1-64 U-home High Voltage Batteries
Online and App Monitoring
MPPT efficiency 99.0%
Advanced weather compensation programming
Up to 30.0 kW of PV
Max. 30A input current, ideal for bifacial and high-power PV module
150% Unbalanced three phase AC output
150% PV over-sizing array
UPS level switching time < 20ms
Octopus & Grid charge ready
Advanced weather compensation
IP65 Rated designed for outdoor use
Inbuilt UPS Capability
Free Future Firmware Upgrades
Free UK Technical Support
Free Installer & Sales Training
Product Outline
LXP20000 Trip Hybrid Full Specifications
Maximum DC Input Power – 30000
DC Input Voltage Range – 690
MPPT Voltage Range – 200~900
Start-up Voltage – 160
MPPT Number – 3
Maximum Short-circuit Current – 50/50/50(A:2/B:2/C:2)
Maximum Input Power Per MTTP – 40/40/40
Compatible Battery Type – Lithium-ion
Rated Battery Voltage – 400
Battery Voltage Range – 100~700
Maximum Charge/Discharge Current – 50
Maximum Charge/Discharge Power – 20000
Maximum Charge Voltage – 700
Rated AC Output Power – 20000
Rated AC frequency (Hz) 50
Rated AC output current (A) 30.3
Rated AC output power (W) 20000
Max. AC input current (A) 45.5
Max. AC input power (W) 30000
THDI – <3%
Solar Input
Maximum DC Input Power – 30000
DC Input Voltage Range – 690
MPPT Voltage Range – 200~900
Start-up Voltage – 160
MPPT Number – 3
Maximum Short-circuit Current – 50/50/50(A:2/B:2/C:2)
Maximum Input Power Per MTTP – 40/40/40
Battery Input/Output
Compatible Battery Type – Lithium-ion
Rated Battery Voltage – 400
Battery Voltage Range – 100~700
Maximum Charge/Discharge Current – 50
Maximum Charge/Discharge Power – 20000
Maximum Charge Voltage – 700
Grid Power
Rated AC Output Power – 20000
Rated AC frequency (Hz) 50
Rated AC output current (A) 30.3
Rated AC output power (W) 20000
Max. AC input current (A) 45.5
Max. AC input power (W) 30000
THDI – <3%
Luxpower Tek Three Phase Trip 20K Hybrid in depth
Luxpower Tek Three Phase Trip 20K Hybrid Overview
Up to 20 Years Warranty
All our LuxPower Controllers come with a comprehensive 12-year manufacturer’s warranty, ensuring that you can rely on the performance and longevity of our products with absolute confidence. At an extra charge, this can be upgraded to 20 years warranty, giving you peace of mind when it comes to your investment.
150% PV over-sizing
The LuxPower Trip20 hybrid inverter is a high-capacity inverter designed to manage both solar power generation and energy storage systems. One of its notable features is the ability to handle 150% PV (photovoltaic) oversizing. PV oversizing refers to installing more solar panel capacity than the inverter’s rated input capacity. In this case, the LuxPower Trip20 hybrid inverter allows for 150% oversizing. This means that if the inverter is rated for a certain capacity (e.g., 20 kW), it can handle solar panels with a combined capacity of up to 30 kW (20 kW x 1.5).
Monitoring
The LuxPower Trip20 Hybrid comes with Free Advanced Monitoring, giving the user a full insight into the system. The platform is an overview of the system performance providing daily, weekly and monthly information.
This allows you to simply change settings such as charge rates and make use of the excellent free Lux programs. The Luxpower monitoring can be viewed via a web portal on PCs and laptops, or on a mobile app for smartphones and tablets.
Advanced Weather Compensation Programming
The LuxPower range now comes with advanced weather compensation, which makes weather predictions. This feature allows users to program night-time grid charging of the controller and batteries based on the following days local weather forecast.
The feature will allow users to operate the battery at its optimum level and increase efficiencies, and as a result save more money.
Grid Charge & Octopus Agile/Outgoing/Go Compatible
New energy providers will now provide extremely cheap off-peak renewable electricity. The LuxPower Trip20 Hybrid can be programmed to take advantage of these cheap off-peak tariffs to charge the batteries to use the energy when the tariffs are high.
20000W Charge + Discharge
To understand the power capabilities of the LuxPower Trip20 Hybrid system, it’s important to look at both the charge and discharge rates as well as the configuration of the batteries used. The LuxPower Trip20 Hybrid is designed with a 50-ampere (A) charge and discharge rate. This means that the system can handle a current of 50A both when storing energy into the batteries (charging) and when supplying energy from the batteries (discharging).
Testimonials
See what our customers have said about Luxpower Units and their products in their homes:
“We are delighted with our Luxpower system. We have recommended this system to our friends with confidence. We are absolutely confident that we have an excellent battery storage solution that it is performing exactly as we hoped it would”
“We just have a 12 panel system which we have had for 8 years. We have had a Luxpower battery storage system fitted and now we save all the daytime extra power which keeps us going in the evenings. The install was done by lunchtime, and we have the monitoring to check the system, although the screen on the unit is very clear .”

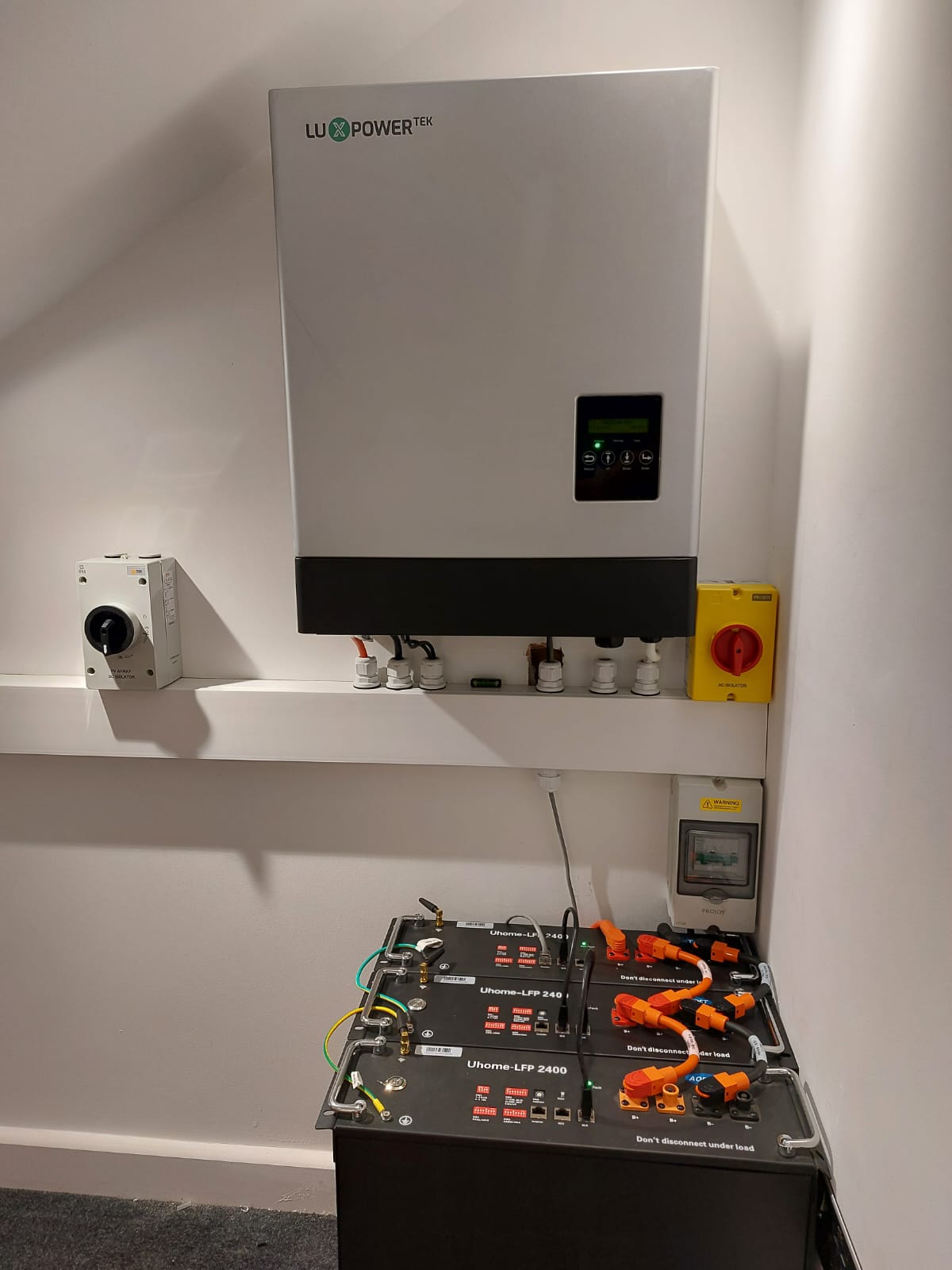

Our new solar system was installed using a Luxpower inverter and 3 Greenlinx batteries. The installers set it all up in our loft space and the batteries are mounted underneath the Luxpower unit. It was really very simple, we were given a password to access the monitoring, and we can see everyday how the power is going into the batteries. At the moment we have plenty of extra power in the daytime – we had a 16 panels system installed – and this power is keeping us going every evening.”
