The Squirrel Pod is simply a more advanced version of the standard AC units. The difference is that they have additional hardware in them to allow (now or in the future) a second, third or up to 8 of the Squirrel pod controllers to be linked together. Each Squirrel Pod needs its own batteries, and is also connected either individually, or via a combined connection, to the customers’ fuse board.
They work in Parallel. This means that only the Primary controller has the CT clamps fitted, and the other units are all set to Subordinate working mode. This means the Primary unit is controlling everything, telling the other units to charge or discharge their batteries.
All the units both standard AC units or the Squirrel pod units are listed on the ENA Register with G100 certification.
Want to know more? Click on our video to watch our Hybrid product overview video
Our YouTube channel is full of useful videos regarding all our products including self help videos and Installation videos.
You can find all our videos by clicking here

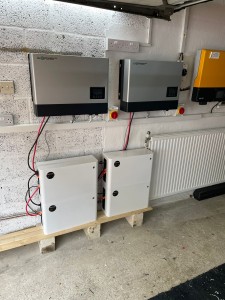

HOW THE SQUIRREL POD SYSTEMS WORK
Expandable future proof units. More than one Squirrel Pod unit can be linked together (or added later) to increase storage capacity or increase charge/discharge rates.

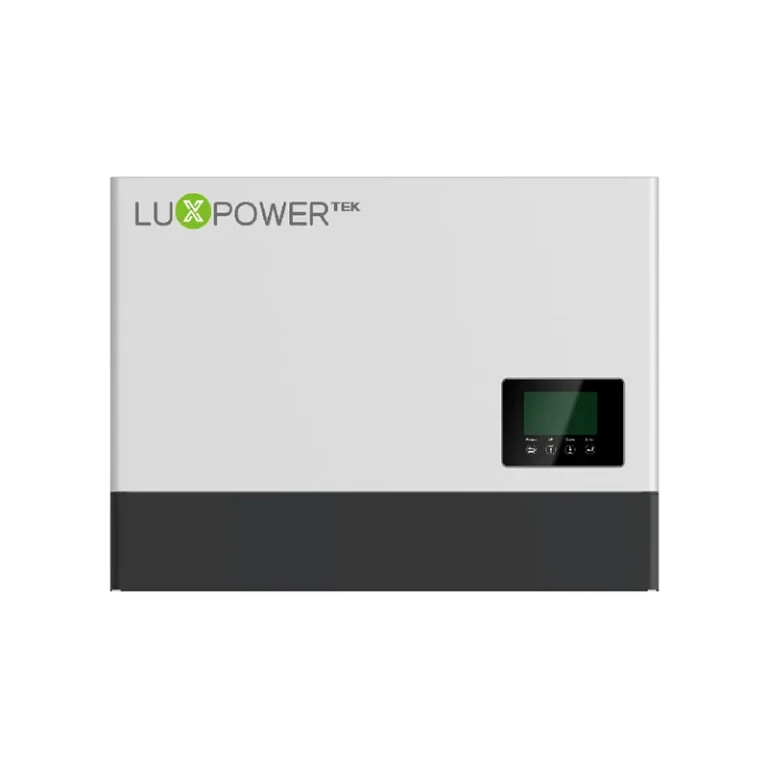

LXP3600 (G98) Squirrel Pod
- Battery Types Li-Ion or Lead-acid
- Nominal Battery Voltage (V) 48
- Max. Charging Voltage (V) SSO (Configurable)
- Max. Charging Current (A) 70
- Max. Discharging Current (A) 70
- Battery Capacity (kWh) >3
- Charging Mode for Li-Ion Battery Self-adaption to BMS
- Charging Mode for Lead-acid Battery 3-stage
- Max.Apparent Power Output to Utility Grid (VA) 3600
- Max.Apparent Power from Utility Grid (VA) 6000
- Nominal Output Voltage (V) 230
- Nominal Ouput Frequency (Hz) 50/60
- Max.AC Current Output to Utility Grid (A} 16
- Max.AC Current From Utilily Grid(A} 26
- Output Power Factor -1 (Adjustable from 0.8 leading to 0.8 lagging)
- Output THDI <3%
- Grid Connection Single phase
- Inrush Current 10A/10us
- Max. Output Fault Current 50A/20us
- Max. Output Apparent Power (VA) 3600
- Peak Output Apparent Power (VA) 4700,30sec
- Automatic Switch Time <0.01s
- Nominal Output Voltage (V) 230 (±2%)
- Nominal Output Frequency (Hz} 50/60 (±0.2%)
- Max. Output Current (A) 16
- Back-up Over Current Protection(A} 40
- Output THDV (linear load} <3%
- Anti-islanding Protection lntegrated(AFD)
- Output Over Current Protection Integrated
- Output Short Protection Integrated
- Output Over Voltage Protection Integrated
- Operation Temperature Range (‘C) -25-60
- Storage Temperature (“C) -40-65
- Relative Humidity 0-95%
- Operation Altitude (m) 4000
- Cooling Natural Convection
- Noise (dB) <25
- User Interface LCD &APP
- Interface With BMS RS 485 /CAN
- Communication With Cloud Wi-Fi
- Weight (kg) 15.6
- Size (Width•Height•Depth mm) 550•320·110
- Mounting Wall Bracket
- Protection Degree IP 65
- Environment Category Outdoor & indoor
- Standby Self Consumption (W) <10
- Topology High Frequency Isolation
- Safety Regulation & EMC G83,CE, EN61000-6-1/3, EN62109-6-1/2, AS4777, IEC62040-1

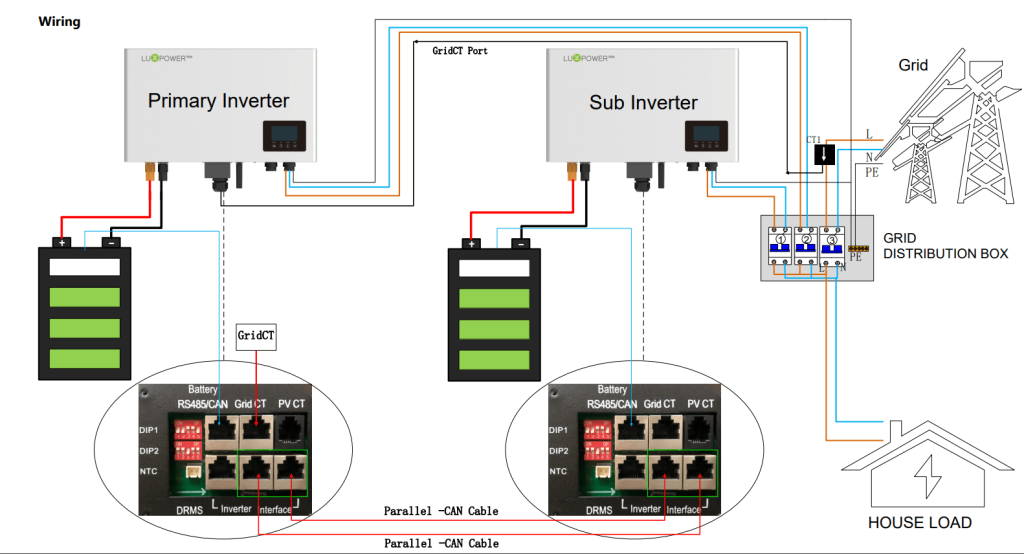

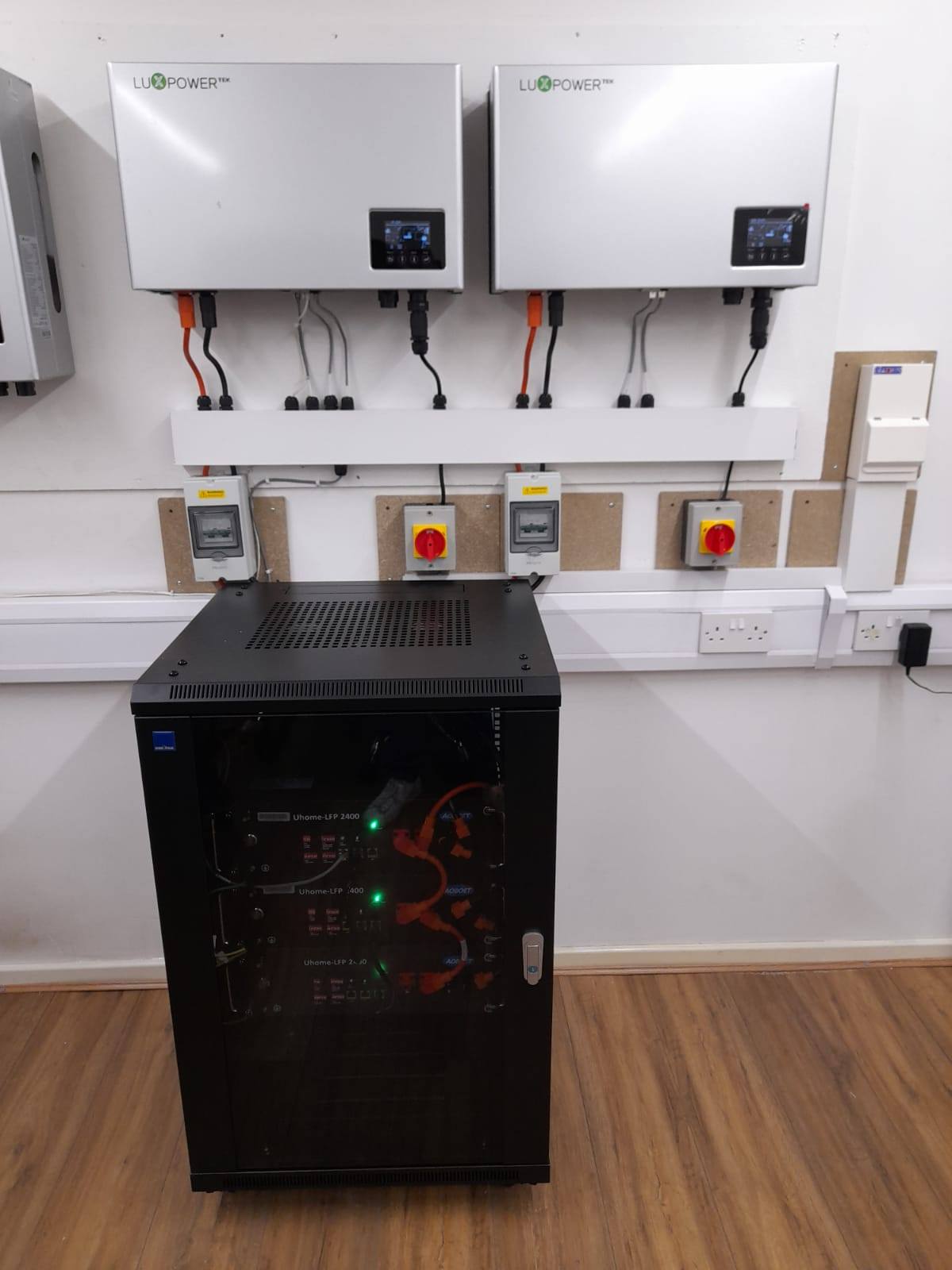

WIRING EXAMPLE OF TWO SQUIRREL PODS

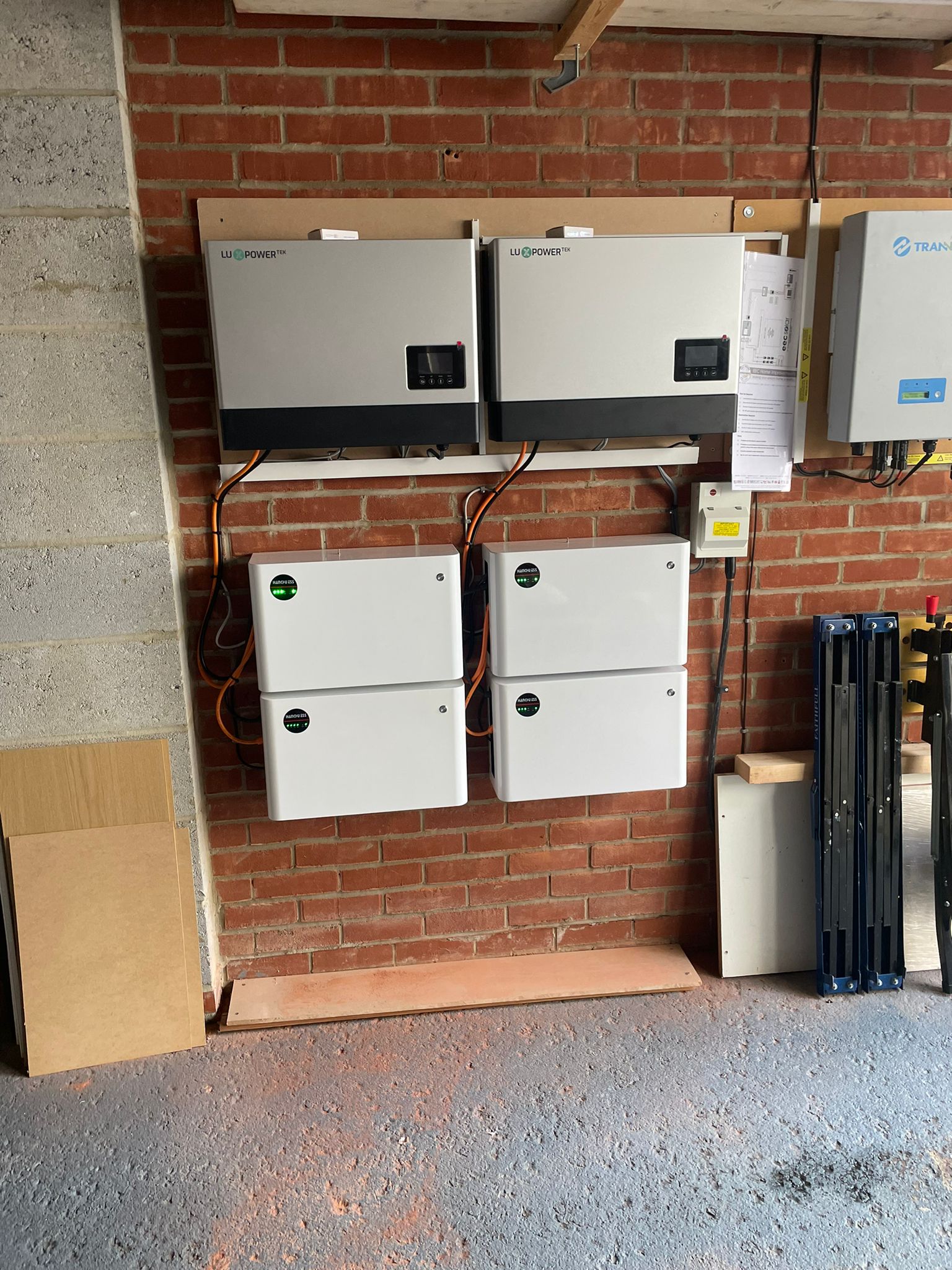

HOW THE SQUIRREL POD WORKS
How the Squirrel Pod works
The Squirrel Pod units are charge controllers for battery storage systems. The system will automatically harvest any residual solar leaving your property, and charge the batteries up to the maximum charge rate of the system.
Where you are looking to charge from the grid to benefit from cheap electricity supply, the Squirrel Pod unit will charge your batteries again according to the number of batteries and the charge rate of your system.
Each Squirrel Pod unit can charge batteries at a rate of 70A (3.5kw). Each time you link a squirrel pod controller you are creating an additional 3.5kw of charge/discharge.
Squirrel Pod units can be set up individually to allow a second unit to be used later in the future. Or they can be set up as a dual or triple system at point of installation.
Upgrading to a Squirrel Pod unit from a standard Lux AC unit allows you to expand your system in the future if you want to.

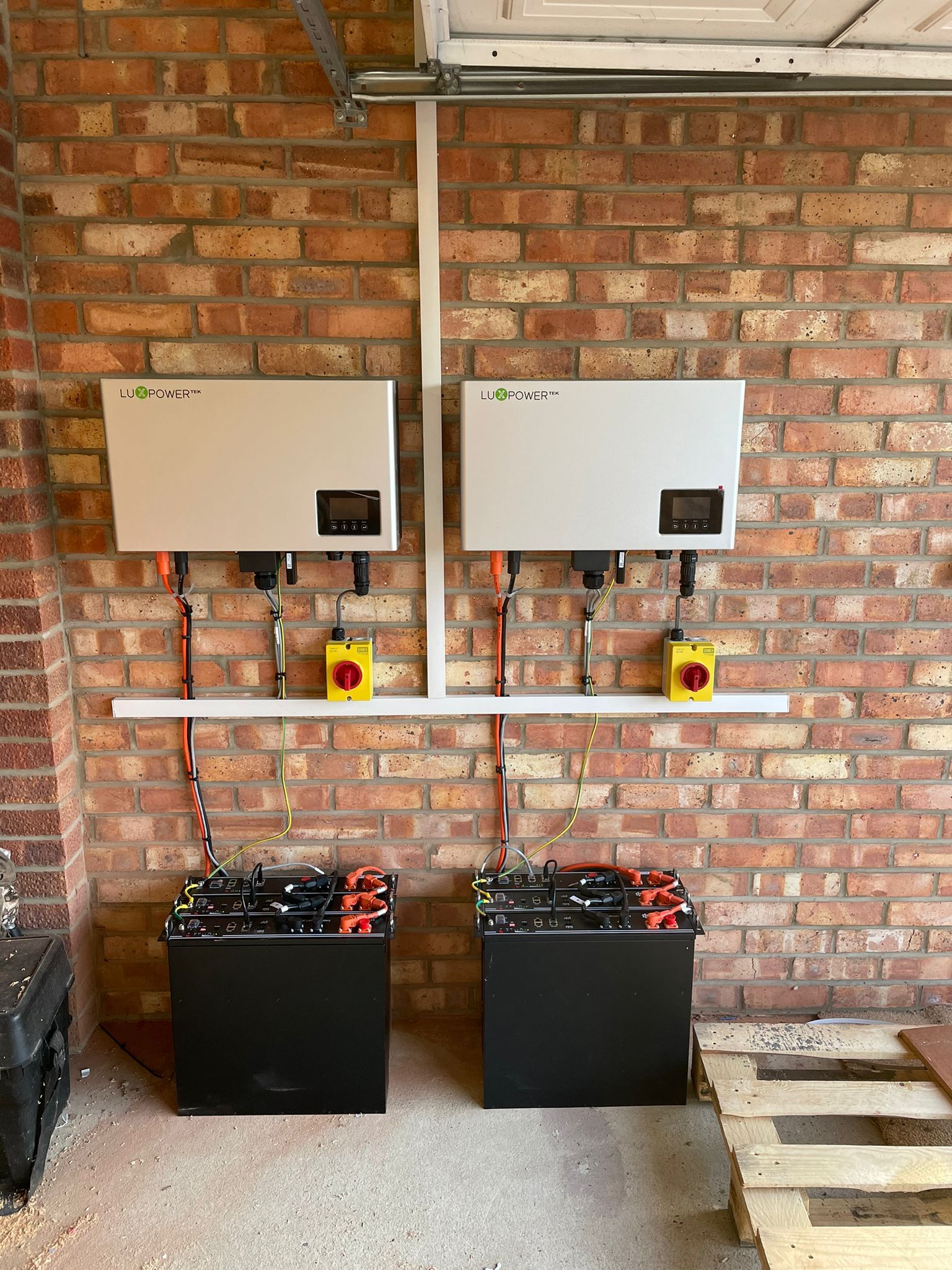

AC COUPLED BATTERY INVERTER
This unit is basically the same as a standard Lux AC unit, except it has additional hardware internally which will allow it to be linked to other Squirrel Pod units to expand your system.
It is possible to link up to six Squirrel Pod units together, each one has a max charge/discharge rate of 70A (around 3.5kw). Therefore a double squirrel pod system, with batteries on each controller can achieve 7kw of charge/discharge.
Each unit can have up to 8 batteries connected. Adding batteries is very simple.
We are proud to announce that all our Lux Power products are affiliated with the “Works With Octopus” program
Compatible Lithium Batteries
Lux Power Monitoring
Lux Power Monitoring comes with three dongle options, WI-FI, Hardwired or 4G Sim Based
**Sim Dongles are sold with a sim card which will have 12 months data on it. The dongles can have an additional 12 months of data, Or the data can be increased from 12 months to 48 months (4+ years) at point of order. In order to add data to the sim it must have at least 1 year of data remaining on that sim card. For purchasing additional data contact Infinity Innovations. Provide the numbers of the sim card, or better is to retain a picture of the sim card which will provide all the data**
All Lux controllers have a free integrated advanced monitoring and maintenance platform. Each Lux unit is provided with a Lux Dongle which is inserted into the Lux unit and used to pair the Lux to the customer router.
The monitoring has multiple levels to allow not only full monitoring for the customer, as well as remote programming, but also technical updates to be delivered to each unit as technology improves.
- Operational settings
- Operating parameters
- Octopus Platform for Go/Agile/Outgoing settings
- Charge settings
- Discharge settings
- Full background performance data
- Performance charts weekly and monthly
- Generation Data summaries
- Remote technical support
- Firmware upgrades
Monitoring is current information which is updated every few minutes to your phone, tablet, laptop, or PC. In addition, all data is recorded on the platform to allow daily weekly and monthly data analysis of the performance of your system.
App & Pc (Web Portal) Monitoring
The Lux monitoring is accessible via a Downloadable App to your phone or web Portal. The App is very good and giving you an overview while of what your system is doing while on the move but for more information and data analysis the web portal is where it comes into its own. You can view a live demo of the Lux Power Web Portal by clicking here: Lux Power Web Portal
Monitoring Installation Support
Infinity Innovations Ltd have many online videos and user guides for monitoring support. You can find all our videos and support here: Monitoring Support Information.
The App is Free with each Lux Controller.
