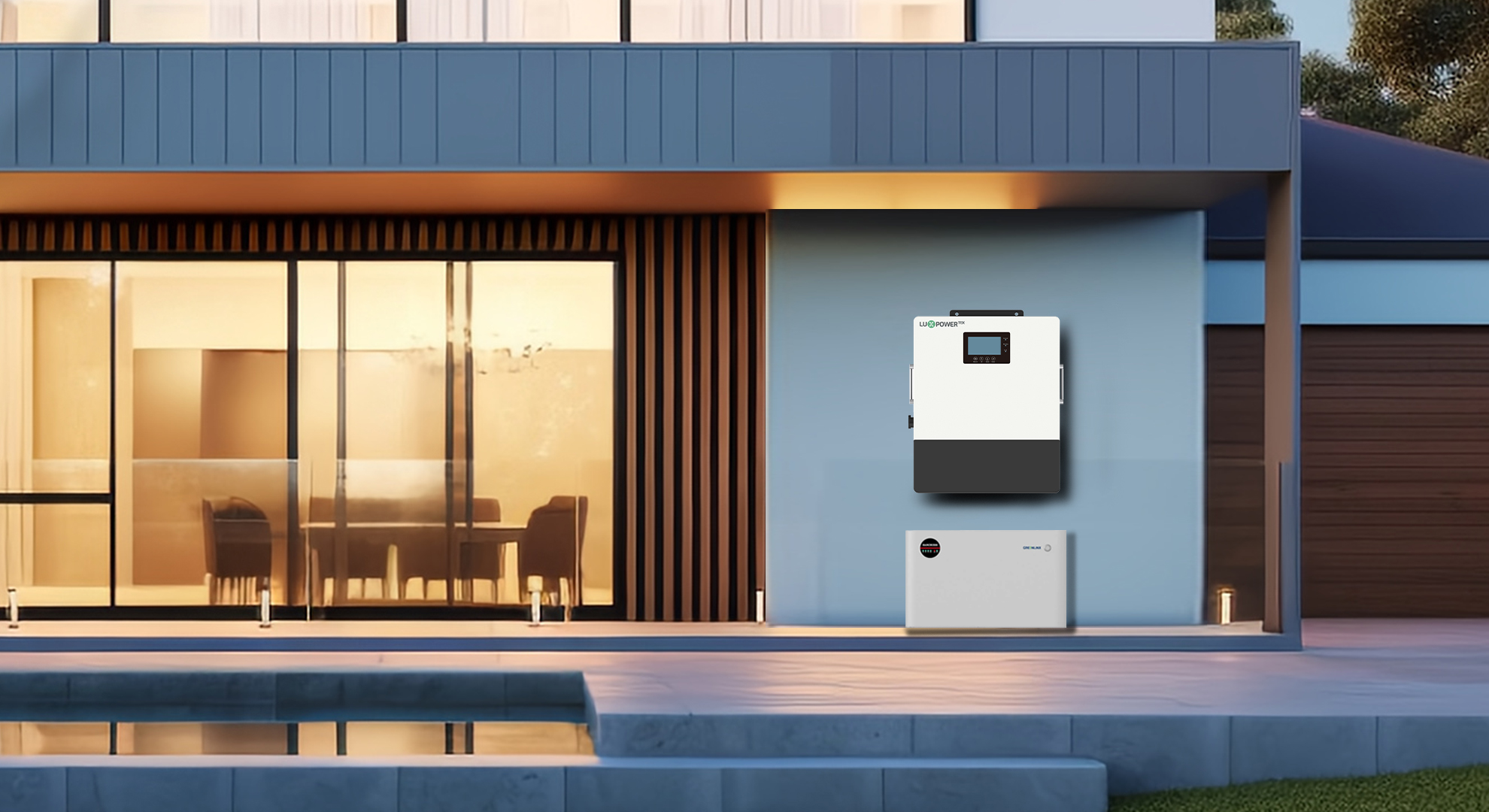

LXP7000 HYBRID (Parallel)

The Lux Hybrid 7kw Parallel unit is a single phase inverter. The maximum PV input is 12kw over 4 inputs with dual MPPT tracking. The unit has been developed to work with the Greenlinx batteries.

The unit is capable of a charge rate of 7kw, discharge of 7kw and therefore a supply to the EPS of up to 7kw. This unit also has a separate input for a generator making it extremely flexible.

It is important to understand that a charge/discharge rate of 7kw is 140A which is above the capacity of standard batteries. Therefore if requiring the Max rate of 7kw for charge/discharge a combiner box must be used to create this amperage safely. Using the combiner box allows a minimum of 4 and a maximum of 16 of the Greenlinx 3.2 batteries.

Without the use of a combiner box it is possible to install from 1-8 Greenlinx batteries, however it is necessary to reduce the amps to 100A on the Lux controller, upgrade the batteries and install a 100A DC breaker to ensure there cannot be any overload.

The Lux Hybrid units benefit from all the same monitoring platforms available to the Luxpower range with all of the additional features such as Octopus Agile and Weather compensation for free.

Paralleling a unit is a way of linking more than one unit together, and selecting one unit to be the Primary unit with all others acting as subordinates. This way allows the units to better work together.

Want to know more? Click on our video to watch our Hybrid product overview video

Our YouTube channel is full of useful videos regarding all our products including self help videos and Installation videos.

You can find all our videos by clicking here

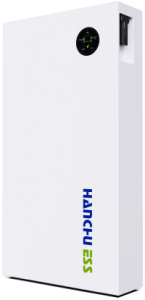

Hanchu Combiner4

The Hanchu Combiner box is designed to work with the 3.2 and the 9.4 kWh batteries.

When using the Luxpower 7kw or 12kw Hybrid inverters, the current (amps) demand is too large for the batteries. Therefore a combiner box allows the batteries to be used as the combiner will add the amps of the batteries together and deliver the higher power through a single larger cable.

Whenever using the combiner box please check you have all the relevant instructions and wiring schematics to correctly set up this rate of charge and discharge.

Downloads:

Combiner Box4 Installation Manual

Parallel units what does this mean?

A parallel unit is a unit which can be used as a single stand alone unit, or as part of a larger system. If more than one unit is being used, then they can be linked together. When linking them together they operate as one unit being the Primary unit with all other units operating as Subordinate units.

Where more than one unit is being installed in parallel the Primary unit is installed exactly like any single unit would be installed – using the CT clamp to measure the operation of the property, then the other units are changed (on the monitoring) to be Subordinate units, simply taking command from the primary unit as to charging or discharging.

Using multiple units in Parallel allows the units to work an be controlled from the Primary Lux unit, providing better communication between the units for more balanced performance.

LXP7000 (G99) Specification

Solar Input

Battery Input/Output

AC Input/Output

PDF Downloads

Solar Input

Battery Input/Output

AC Input/Output

PDF Downloads

Key Features

12 years warranty as standard – Can be extended to 20-year warranty
Allows 1 to 8 Lithium Batteries
Remote Upgrading – Firmware and parameter upgrading remotely
Free monitoring – For Mobile & web portal (PC)
Advanced Weather compensation programming
Octopus Agile Tariff Ready
Octopus Outgoing Tariff Ready
Octopus Go Tariff Ready

Integrated EPS as standard – Maximum 30.5A Limited
Smart export control on both AC & EPS output
Max Charge & discharge rate of 140amps
Weight – 44Kg
Size – 580*490*265
IP65 rated
UK technical Support
Grid Share Incentive ready
Seamless automatic switch over – 0.01s

We are proud to announce that all our Lux Power products are affiliated with the “Works With Octopus” program

NUMBER OF UNITS SOLD IN THE UK

Compatible Lithium Batteries

Hanchu 3.2kW Click Here For More Information

Hanchu 9.4kW Click Here For More Information

LUX Power LXP 7000 Parallel Hybrid Controller Key Features

Up To 20 Years Warranty

All our Lux Power Controllers come with 12 Years manufacturer’s warranty, However at an extra charge you can upgrade your warranty to 20 years giving you a piece of mind when it come to your investment

140Amps Charge & Discharge Rates

The 7kw units have 32A of AC charge/discharge, so around 7000w (7kw). The DC charge/discharge is 140A. The 7kw batteries work with the Hanchu range which are 50V batteries. Therefore the max charge discharge is 140A x 50V = 7000w.

However this is above the threshold of the 50V Hanchu battery range, therefore if the full charge/discharge rate of 7000w is required, a Hanchu combiner box is needed to achieve this max charge/discharge. However it is also possible to limit the charge/discharge to 100A, and install 1-8 batteries as standard allowing a charge/discharge of around 5kw. Always contact Infinity Innovations for clear instructions for both options.

Advanced Monitoring

Our Lux Power LXP 7000 Parallel Hybrid comes with Free Advanced Monitoring that gives you a full insight to your system showing more information than you can handle. The platform is an overview of the system performance providing daily weekly and monthly information. This platform allows you to simply change settings such as charge rates and make use of the excellent FREE lux programs. The Luxpower monitoring can be viewed via a web portal on laptops and PC’s or Mobile App for smartphones and tablets.

Advanced Weather Compensation Programming

The Lux Power range now comes with advanced weather compensation (Weather predictions). This incredible feature allows you the customer to program your night time grid charging of your Lux power controller and batteries base on tomorrow’s irradiance (Weather) in your local area. This feature is designed for you to controller and operate your battery system at its optimum level, saving you more money on your investment.

“There is no need to fill your batteries from the grid in the night at a cost if tomorrow’s weather is going to be sunny and you can fill your batteries for free!”

Advanced Eps

The Lux Power LXP 7000 Hybrid Controller has an impressive, enhanced EPS feature will switch over in 0.01s in the event of a power cut, meaning these systems can also be used with Grid Share incentive programmes – Please note the EPS is limited to 13A and is designed for Emergency Power Supply only, it is not designed to power your entire fuse board.

Grid Charge & Octopus Agile/Outgoing/Go Compatible

New Energy providers will now provide extremely cheap off-peak renewable electricity. The Lux Power LXP 7000 Parallel Hybrid can be programmed to take advantage of these cheap off-peak tariffs to charge the batteries to use the energy when the tariffs are high. Luxpower constantly respond to new offerings and developments in the industry and develop new add-ons to the monitoring to simplify and improve the experience for our customers.

Lux Power Monitoring

Lux Power Monitoring comes with three dongle options, WI-FI, Hardwired or 4G Sim Based

**Sim Dongles are sold with a sim card which will have 12 months data on it. The dongles can have an additional 12 months of data, Or the data can be increased from 12 months to 48 months (4+ years) at point of order. In order to add data to the sim it must have at least 1 year of data remaining on that sim card. For purchasing additional data contact Infinity Innovations. Provide the numbers of the sim card, or better is to retain a picture of the sim card which will provide all the data**

All Lux controllers have a free integrated advanced monitoring and maintenance platform. Each Lux unit is provided with a Lux Dongle which is inserted into the Lux unit and used to pair the Lux to the customer router.

The monitoring has multiple levels to allow not only full monitoring for the customer, as well as remote programming, but also technical updates to be delivered to each unit as technology improves.

Operational settings
Operating parameters
Octopus Platform for Go/Agile/Outgoing settings
Charge settings
Discharge settings
Full background performance data
Performance charts weekly and monthly
Generation Data summaries
Remote technical support
Firmware upgrades

Monitoring is current information which is updated every few minutes to your phone, tablet, laptop, or PC. In addition, all data is recorded on the platform to allow daily weekly and monthly data analysis of the performance of your system.

App & Pc (Web Portal) Monitoring

The Lux monitoring is accessible via a Downloadable App to your phone or web Portal. The App is very good and giving you an overview while of what your system is doing while on the move but for more information and data analysis the web portal is where it comes into its own. You can view a live demo of the Lux Power Web Portal by clicking here: Lux Power Web Portal

Monitoring Installation Support

Infinity Innovations Ltd have many online videos and user guides for monitoring support. You can find all our videos and support here: Monitoring Support Information.

The App is Free with each Lux Controller.
